JACK HAMMERS AND SPARES - MINDRILL
Top of the Line
.png)
MH505L
The MH505L sinker drill is a time-tested and proven choice. This low-cost pneumatic jackhammer dominates the markets of India and Brazil due to its high return on investment and is designed for drilling through granite, hard-faced rock, quarry drilling, bench drilling, and drilling secondary holes for blasting. It has built-in air flushing which facilitates the removal of drill chipping to reduce the risk of drill jamming (the MH504W is its water flushed counterpart which is used for dust suppression applications). This can drill holes up to depths of 6 meters. This drill also has a robust kick-latch retainer for fast and convenient tool change.
MH505HB
The MH505HB pneumatic jackhammer. Sinker drill is a footrest equipped version of the MH505L which is a time-tested and proven choice. This low-cost drill dominates the markets of India and Brazil due to its high return on investment and is designed for drilling through granite, hard-faced rock, quarry drilling, bench drilling, and drilling secondary holes for blasting. It has built-in air flushing which facilitates the removal of drill chipping to reduce the risk of drill jamming. It also comes with a water flushed option for dust suppression applications. The footrest increases operator comfort and enables faster drilling. This can drill holes up to depths of 6 meters. This drill also has a robust kick-latch retainer for fast and convenient tool change.
MH502A
The MH502A pneumatic sinker drill is the first choice for multiple kinds of drilling operations. With the largest-in-class piston diameter and its superior integral oiler lubrication system, the MH502A has very low spare parts consumption. This drill also has low air consumption thereby reducing overall running costs. Combined blower & throttle lever and T-handle increases operator comfort. This pneumatic rock drilling machine with robust construction quality and streamlined design allows high penetration rates over a long period with minimum maintenance costs and downtime.
MH502AFR
MH502AFR pneumatic rock drills, sinker Drills robust design that makes them easy to handle in quarry-mine and general excavating work. The design also provides the main valve and cylinder porting concept that helps maintain constant drilling speed throughout long service life. Working parts are constantly protected with an effective lubrication system. Pneumatic rock drill in Industrial Breakers and Demolition Hammers. The added feature is the water flushing system for underground tunnelling.
MH501L
The MH501L Pneumatic Rock Drill is a winner when it comes to ease of use in tight spaces due to its low-weight and robust rifle bar rotation mechanism. This lightweight drill has been used for years for small jobs and is most suitable for mines with confined operator spaces. The drill allows miners to achieve depths of up to 1.5 meters (5 feet) with minimal air consumption. The T-grip handles along with its low-weight make the experience much more comfortable from the operator point of view. The air flushing system built into the drill rod prevents drill jamming by removing drill chips.

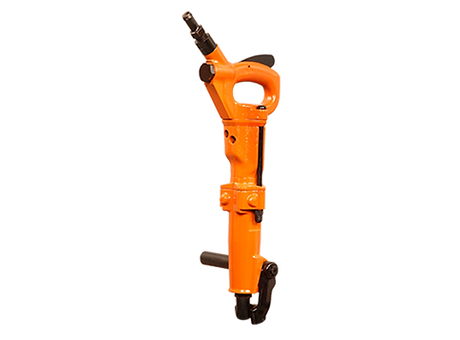

MH100D
At a net weight of just about 10 kilograms (23 pounds), the MH100D with an ergonomic D-type handle is an attractive choice for horizontal drilling of up to 1 meter (3.3 feet) in tight places. This lightweight and small-size drill are ideal for plug hole drilling, anchor and wedge drilling. Despite its small form factor it still carries the high performance and unparalleled reliability of every Mindrill product.
