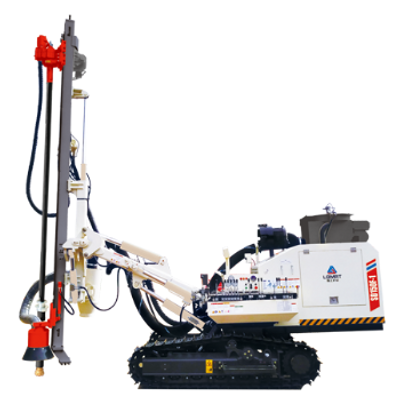

SD150F-1 : LGMRT

Surface Separated DTH Drill Rig

   We are proud to introduce you this Drill Rig First ever in India !

​

FEATURES

​

SD150F-1 is a versatile drilling rig developed on the basis of SD150F, which is mainly used in borehole、mid-large quarry、coal mine and non-ferrous metal mines. Stronger feed chain and longer rotation head base greatly improve the reliability of the equipment.

​

• Versatility - The unique drilling boom design provide bigger coverage for all kinds of applications.

• Dust Collection - Dual stage dust collection system offers best environment for operators and machine. Dual stage dust collection system offers best environment for operators and machine.

• Productivity - Longer starter pipe and feed travel reduce the rod changing times and improve the efficiency.

Reliability - Rebust structure and renowed hydraulic and electrical components make SD150F-1 more reliable.​

​

    PARAMETER

​

• Hole Diameter(mm) 90-152

• Drill Pipes(mm) 76

• DTH Hammers(') 4 / 5

• Rotary Motor(cc) 310

• Engine(kW) YUCHAI 73.5

• Dimensions(W×H×L )(mm) 2240×2750×7060

• Weight (kg) 7100
